WebGL

Graphics programming for the web

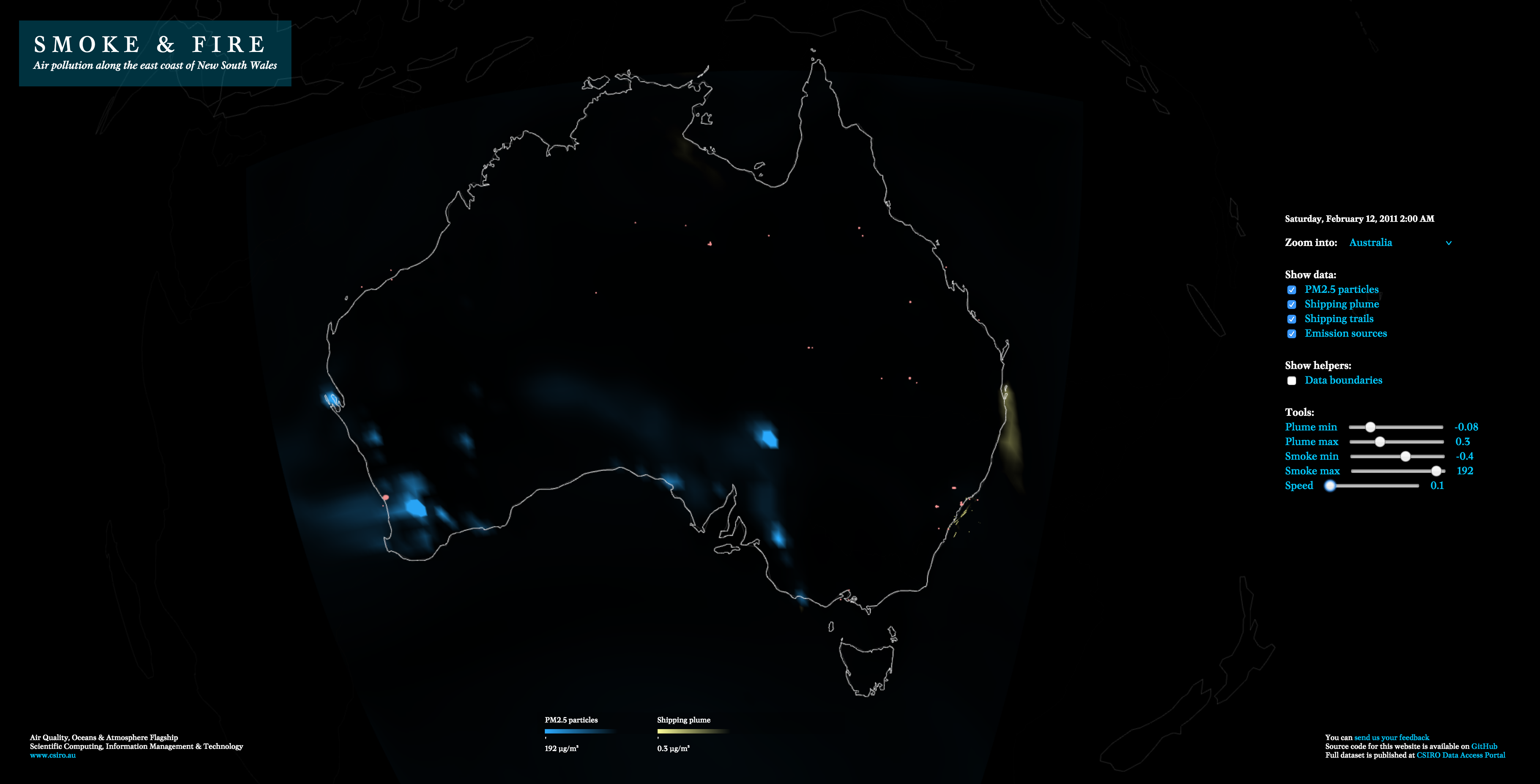

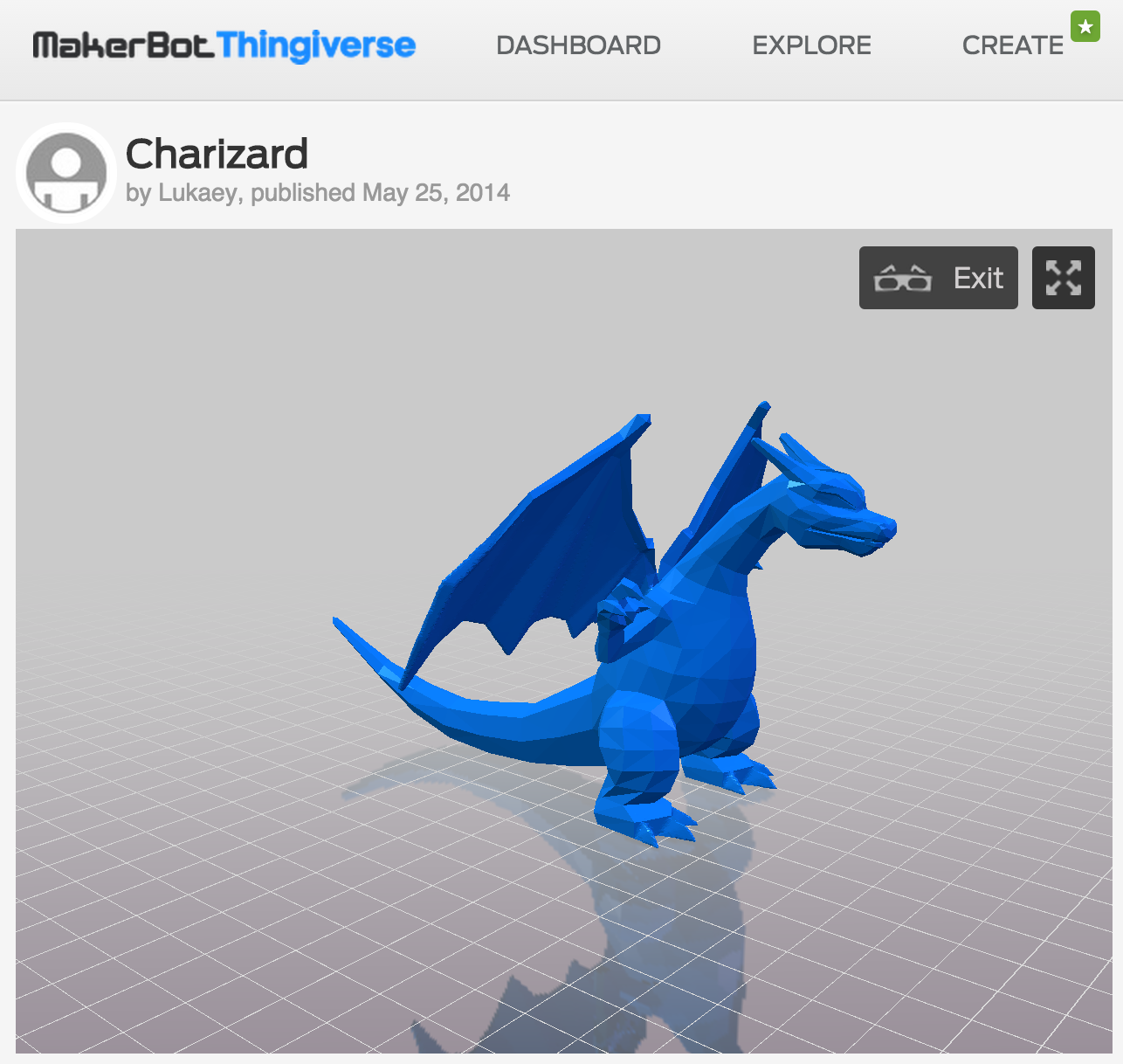

WebGL is a Javascript API for rendering interactive 3D computer graphics and 2D graphics within any compatible web browser without the use of plug-ins. It is designed and maintained by Khronos Group.

Try yours: get.webgl.org

There are

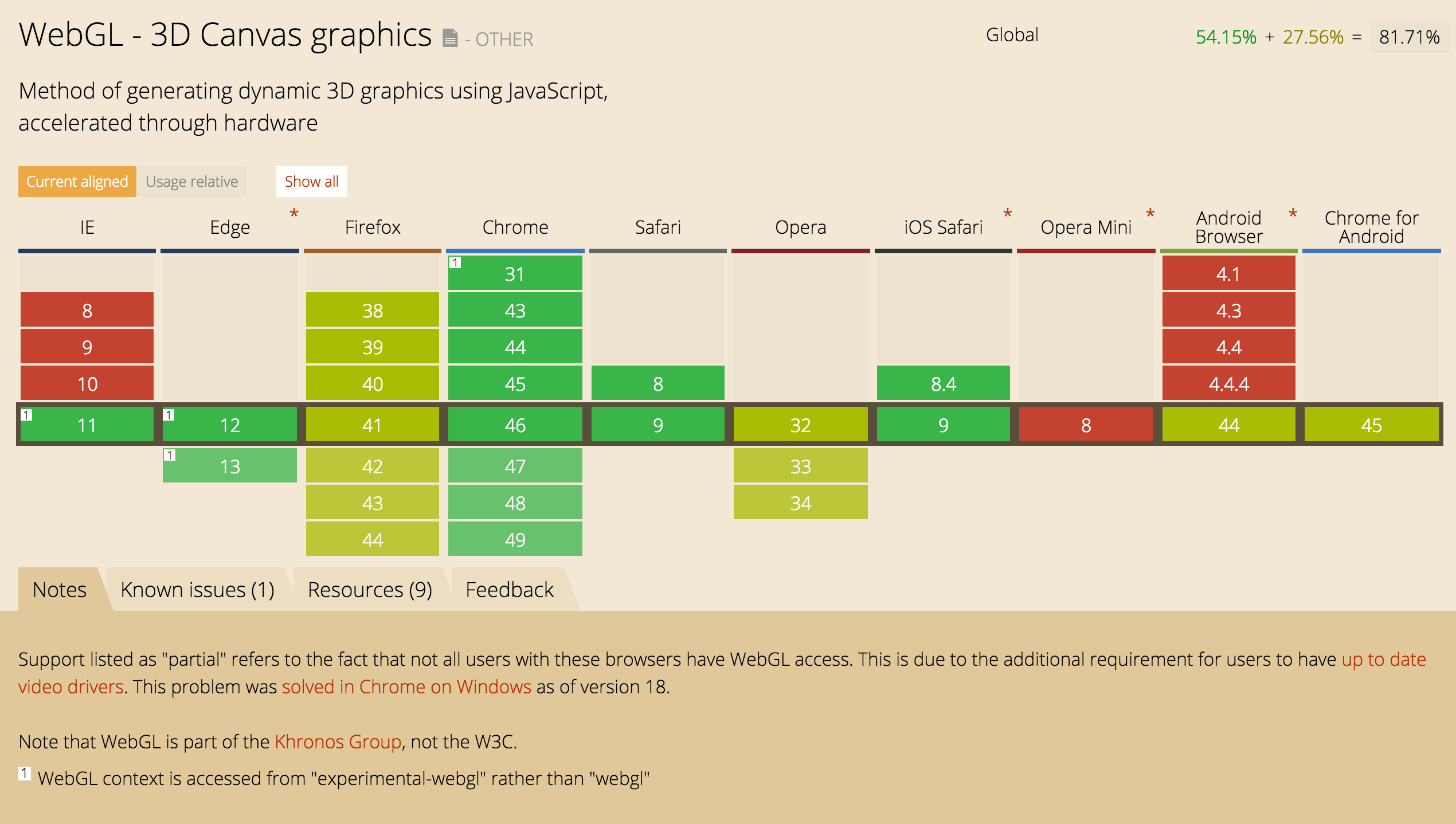

>1 billion

devices that support WebGL.

WebGL Javascript API ...

Implements closely to OpenGL ES 2
Draws to HTML5 <canvas> element.
Provides access to low-level graphics concepts: buffers, primitives, shaders and textures
GPU Accelerated - WebGL is fast!
Works with all other HTML5 standards and web technologies.
Does not require a browser plugin; WebGL "just works".

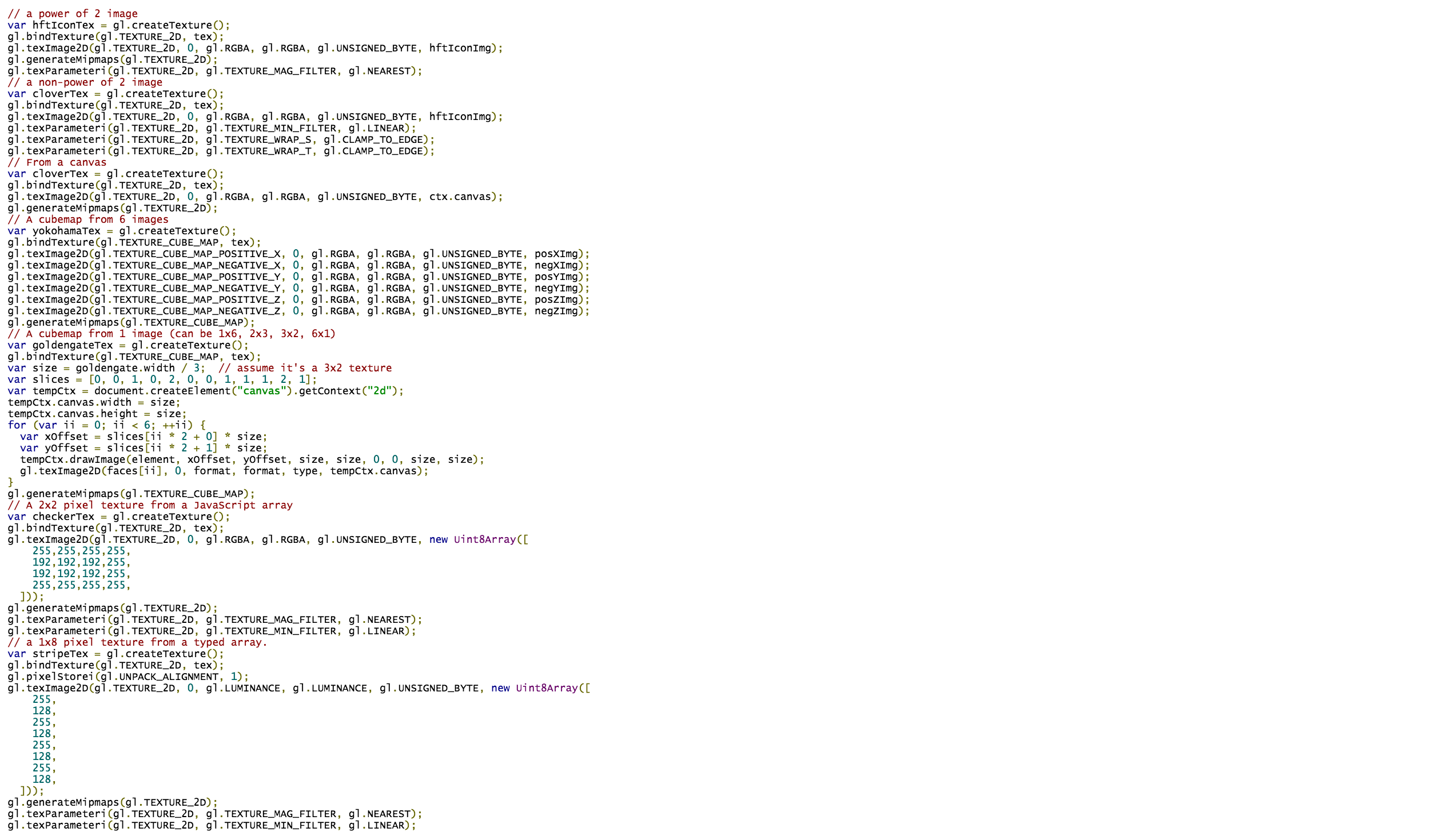

WebGL Libraries

three.js (threejs.org)

sceneJS (scenejs.org)

Babylon.js (babylonjs.com)

CopperLicht (ambiera.com/copperlicht)

TWGL (twgljs.org)

... and more

<script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r72/three.min.js">

three.js

High-level 3D library
Extremely popular (21k+ favs on Github)
Well documented and has good community support
Cuts down boilerplates while maintaining flexibility

Let's dive in.

Just a few steps to get started.

var renderer = new THREE.WebGLRenderer();
var width = window.innerWidth;
var height = window.innerHeight;

renderer.setSize( width, height );

document.body.appendChild( renderer.domElement );

1. Setup render context

var scene = new THREE.Scene();

var geometry = new THREE.SphereGeometry( 1, 32, 32 );
var material = new THREE.MeshBasicMaterial( { color: 0xd5631d } );
var object = new THREE.Mesh( geometry, material );
scene.add( object );

var camera = new THREE.PerspectiveCamera( 55, width / height, 1, 1000 );
camera.position.z = 3;

2. Create geometry and camera

function draw () {
  window.requestAnimationFrame( draw );
  renderer.render( scene, camera );
}
draw();

3. Start rendering

var light = new THREE.PointLight( 0xffffff, 1 );
light.position.set( 10, 10, 10 );
scene.add( light );

var material = new THREE.MeshPhongMaterial( { color: 0xd5631d } );

4. Light up the world

var geometry = new THREE.SphereGeometry( 1, 32, 32 );
var material = new THREE.MeshLambertMaterial({
  map: THREE.ImageUtils.loadTexture('img/mars_1k_color.jpg')
});
var object = new THREE.Mesh( geometry, material );
scene.add( object );

5. Apply texture mapping

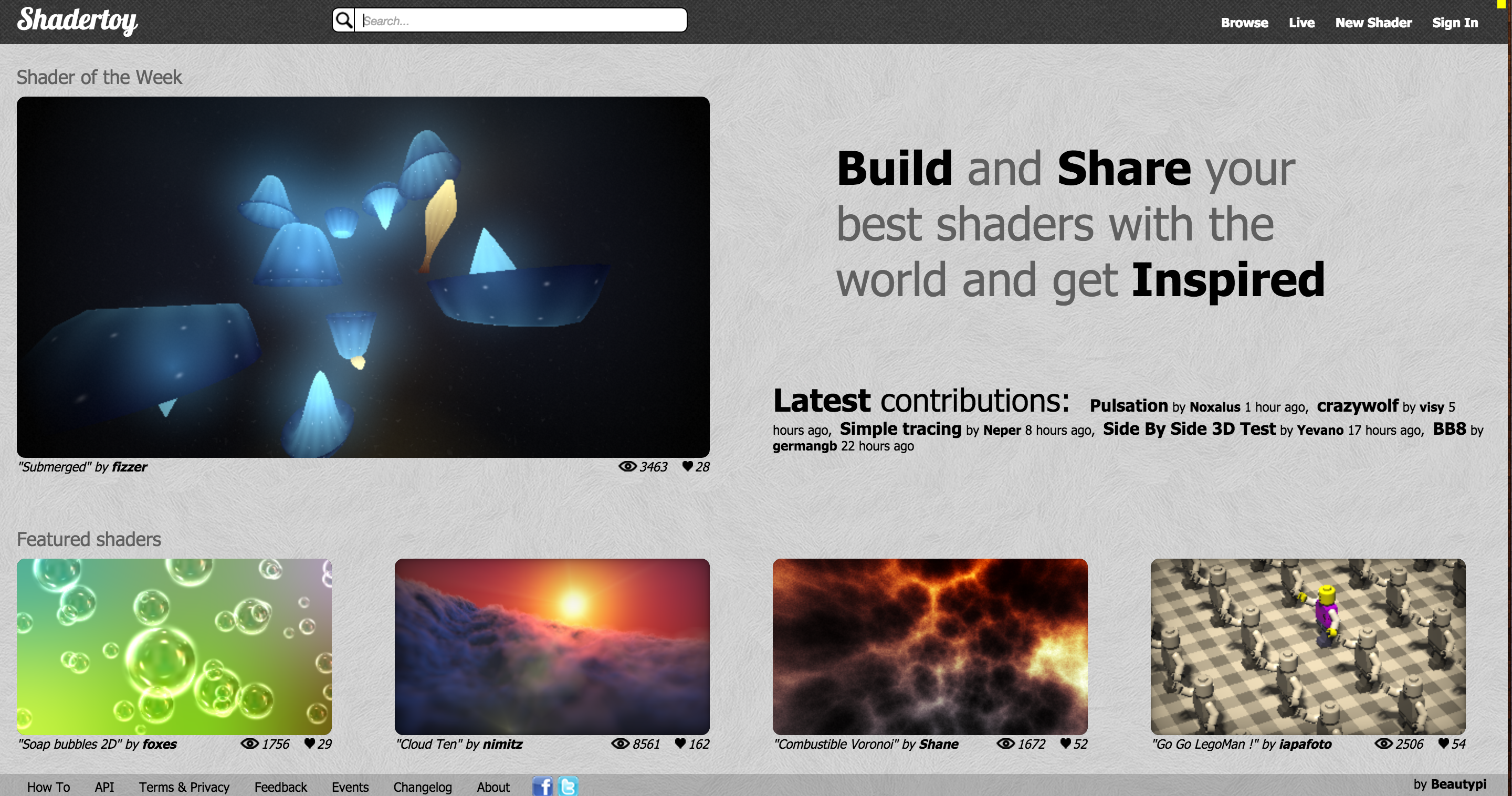

But what about shaders?

ThreeJS makes them easy to use!

var vertexShader = document.getElementById('basic_shader_vertex').textContent;
var fragmentShader = document.getElementById('basic_shader_fragment').textContent;
var material = new THREE.ShaderMaterial({
  uniforms: {
    map: { type: 't', value: THREE.ImageUtils.loadTexture('img/mars_1k_color.jpg') }
  },
  vertexShader: vertexShader,
  fragmentShader: fragmentShader
});

1. THREE.ShaderMaterial

varying vec2 vUv;

void main() {
  vUv = uv;
  gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
}

2. Texturing (vertex)

uniform sampler2D map;

varying vec2 vUv;

void main() {
  gl_FragColor = texture2D(map, vUv);
}

3. Texturing (fragment)

var material = new THREE.ShaderMaterial({
  uniforms: {
    map: { type: 't', value: THREE.ImageUtils.loadTexture('img/mars_1k_color.jpg') },
    light: { type: 'v3', value: new THREE.Vector3(10, 10, 10) }
  },
  vertexShader: vertexShader,
  fragmentShader: fragmentShader
});

4. Add a light source

varying vec2 vUv;
varying vec3 vNormal;

void main() {
  vUv = uv;
  vNormal = normalize(normalMatrix * normal);
  gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
}

5. Surface normals (vertex)

uniform sampler2D map;
uniform vec3 light;

varying vec2 vUv;
varying vec3 vNormal;

void main() {
  // Light up Mars
  vec4 lightPos = viewMatrix * vec4(light, 1.0);
  float illumination = dot( vNormal, normalize(lightPos.xyz) );
  vec4 color = texture2D(map, vUv) * clamp(illumination, 0.0, 1.0);

  // Red planet glow
  float viewFactor = dot( vNormal, vec3(0.0, 0.0, 1.0) );
  vec3 glow = vec3(0.9, 0.1, 0.2) * (1.0 - viewFactor);

  gl_FragColor = 0.25 * vec4(glow, 1.0) + color;
}

6. Lighting (fragment)

WebGL GLSL (OpenGL ES 2.0) pre-defined variables
